Cyclic operation
The cyclic use of a battery is to use it as a stand-alone power source. AGMs of this type are prepared for very frequent charging and discharging. Thus, they are used in wheelchairs, photovoltaic installations, golf carts, toys and lawnmowers.
Buffer operation
Buffer operation allows a battery to act as a backup power supply for a plugged-in device. A battery connected to a power system in the event of a failure of the main power source provides additional power. They are used in this way in alarm systems, UPS, cash registers or emergency lighting.
Maintenance-free operation
Batteries made with AGM technology were created to ensure the greatest possible safety during use. Thanks to the self-regulation function (VRLA valves), AGMs provide up to 5 years of maintenance-free operation. It increases the safety of the device's operation, regardless of the position of the battery.
Safety
AGM batteries are designed for even the most extreme conditions. The fiberglass used ensures that the electrolyte is sealed in the casing which allows the battery to be used in any position without fear of spilling the contents. This is especially important in the case of powered toys, which are exposed to various types of shocks. This makes Green Cell AGM batteries completely safe for users.

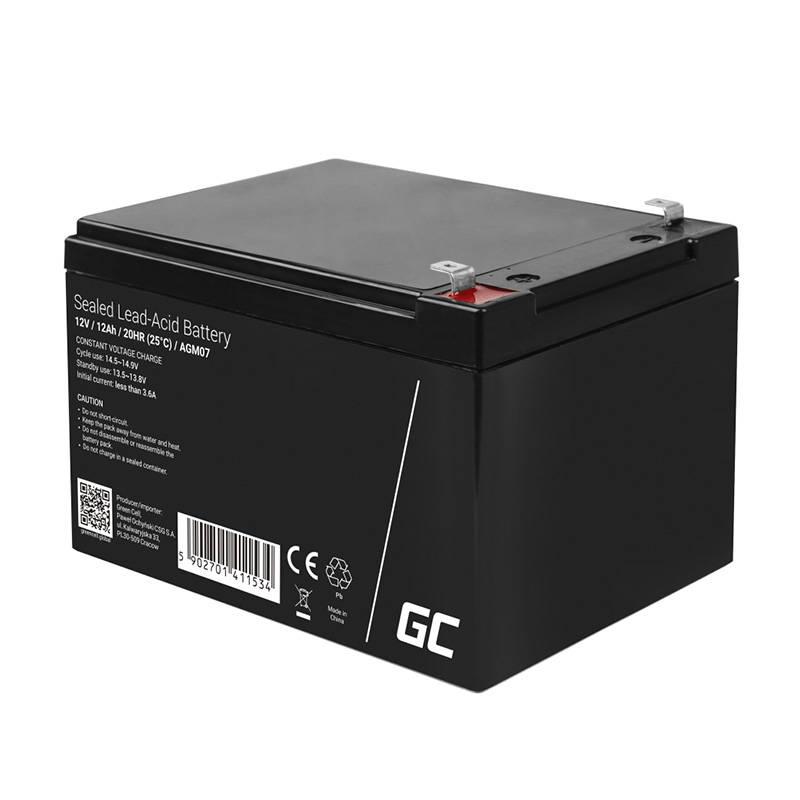

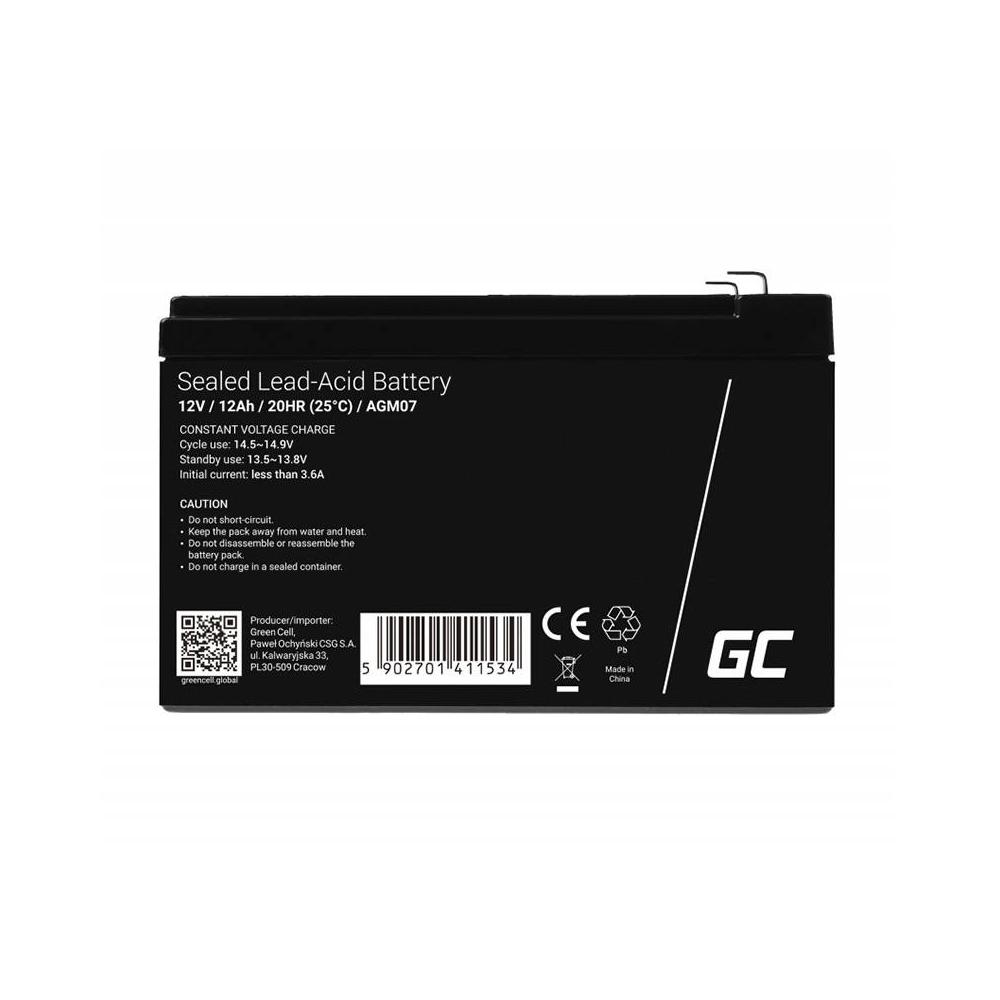

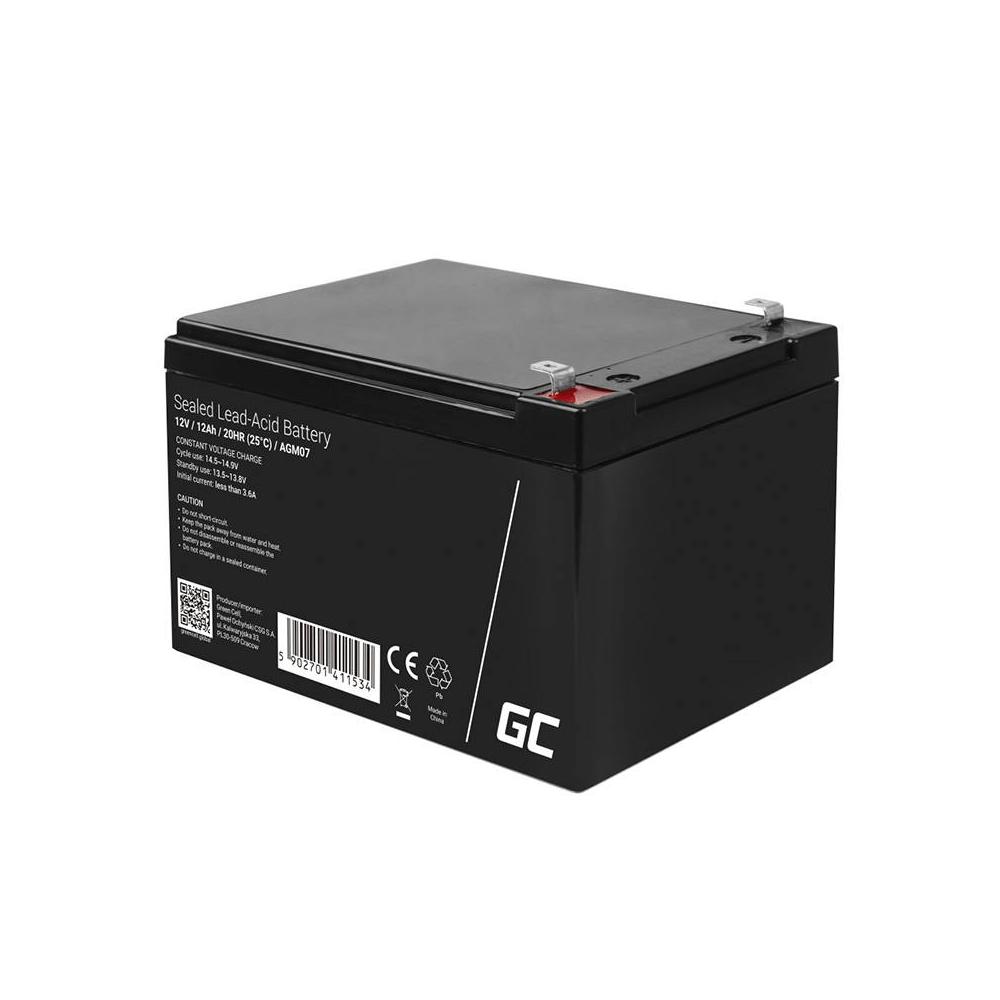

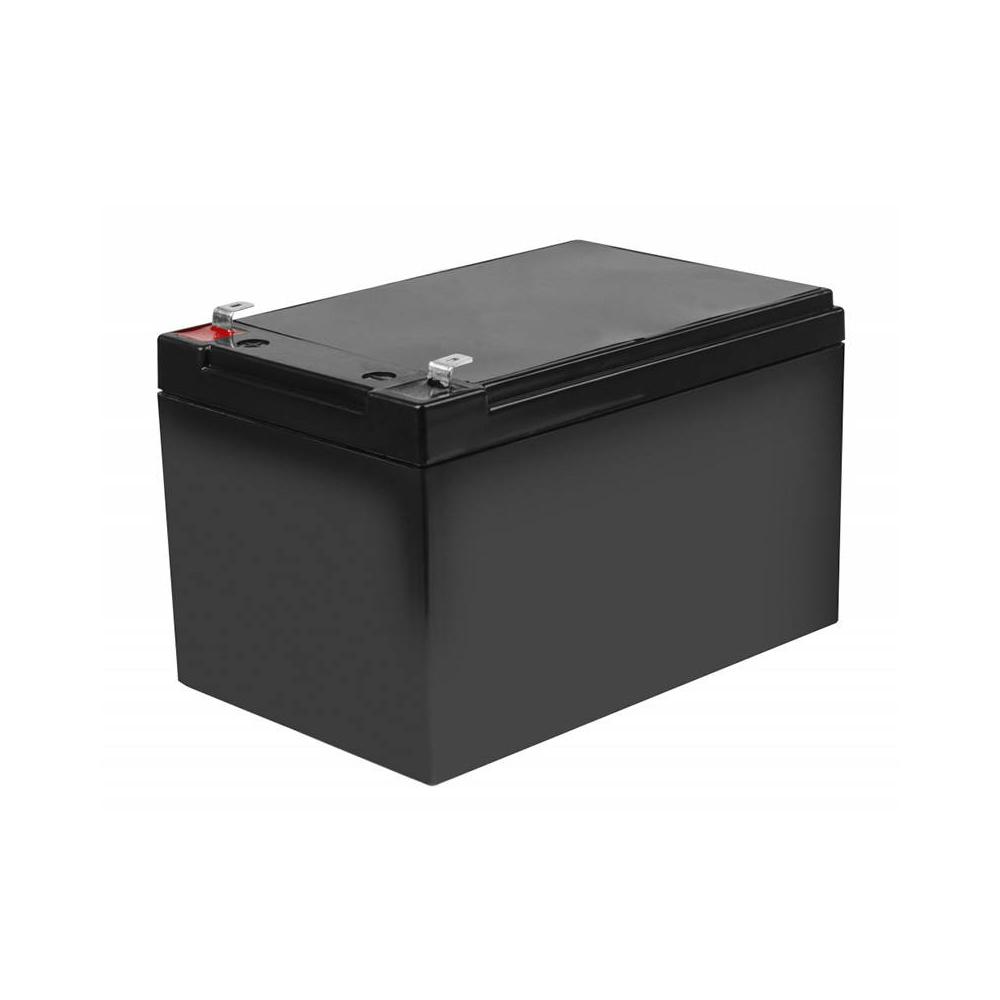

Manufacturer. | Green Cell |
---|---|
Model | AGM07 |
Capacity | 12 Ah |
Voltage | 12 V |
Type | VRLA AGM |
Terminal | Faston 250 (F2) |
Max. discharge current | 3C |
Capacity by temperature | (40 °C~102%) (25 °C~100%) (0 °C~85%) (-15 °C~65%) |
Cyclic charging | 14.5 - 14.9 V (-30 mV/C) |
Maximum charging current | 3.6 A |
Lifetime | more than 5 years |
Self-discharge | 2% per month (at 25°C) |
Buffer charging | 13.5 - 13.8 V (-20 mV/C) |
Internal resistance | ≤25mΩ (at temp. 25°C) |
Capacity range | 10 - 20 Ah |
Weight | 3.3 kg |
Dimensions | 151 x 98 x 95 mm |
